parameters
| NO. | Description | Parameter | |

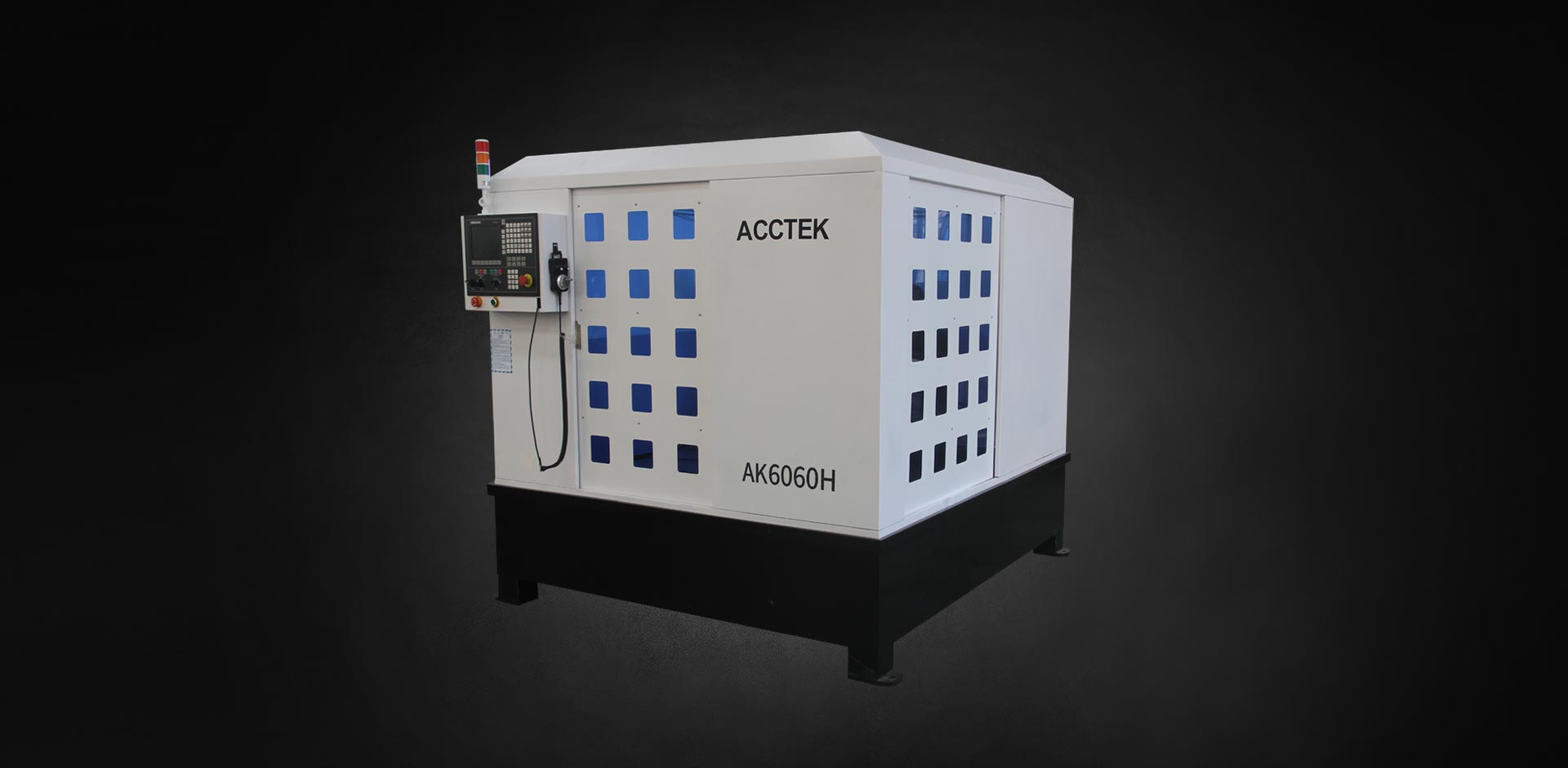

| 1 | Model | AK4040H | AK6060H |
| 2 | X,Y,Z Working Area | 400*400*200mm | 600*600*200mm |
| 3 | Table Size | 400*400mm | 600*600mm |
| 4 | Traveling Positioning Accuracy | ±0.02mm | |
| 5 | Repositioning Accuracy | ±0.01mm | |
| 6 | Table Surface | T-slot Extrusions | |
| 7 | Table Frame | Whole Cast Steel | |
| 8 | Transmission | TBI Ball Screw from Taiwan | |
| 9 | Guide rails | Hiwin Rail Linear guide rails | |
| 10 | Max. Power Consumption(Without spindle) | 0.8Kw | |
| 11 | Max. Rapid Travel Rate | 6000mm/min | |
| 12 | Max. Working Speed | 3000mm/min | |
| 13 | Spindle Power Motor | 3.2 Kw water-cooled spindle | |
| 14 | Spindle Speed | 0-18000RPM | |
| 15 | Drive Motors | Hybrid servo motors | |
| 16 | Working Voltage | 220/380V/50/60Hz | |
| 17 | Command Language | G code | |
| 18 | Operating System | Taiwan Syntec controller | |
| 19 | Inverter | Shanghai Fuling inverter | |
| 20 | Bearing holders | Original from Taiwan | |
| 21 | X,Y Resolution | <0.01mm | |
| 22 | Software Compatibility | Type3/ Artcam software | |
| 23 | Running Environment |
Temperature: 0℃～45℃ Relative humidity: 30%～75% |
|
| 24 | Packing Size | 1800*1500*1800mm | 2000*1660*1800mm |
| 25 | Net Weight | 430KG | 550KG |
| 26 | Gross Weight | 550KG | 650KG |
Basic Features
3.2KW ATC water cooling spindle
Smooth body, not easy to rust;powerful and longer lifetime.Independent research and development, rational design.
Auto tool magazine
4pc auto tool changers. Don’t need to change tools manually when machine works, improve efficiency a lot.
Syntec controller
The system stability is very good, the man-machine operation is friendly, easy to learn and operation, powerful function
Heavy duty Cast iron structure
High strength and precision, strong stability, no deformed for many years, long lifetime.
Fully enclosed structure
Good protection, not only can see the work clearly, but also play a role in protecting safety.
LEADSHINE Hybrid servo motor
Without A/D conversion, the digital pulse signal can be directly convertedinto angular displacement. Cheap and good performance ,function is to drive the axis movement as parameter setting.
Options
Rotary axis
Realize local rotary machining, reduce finishing allowance and complete tool path calculation at one time
Leadshine servo motor
Fast speed, more convenient, save processing time, high control accuracy
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.
applications
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
