parameters
| NO | Description | Parameter | |

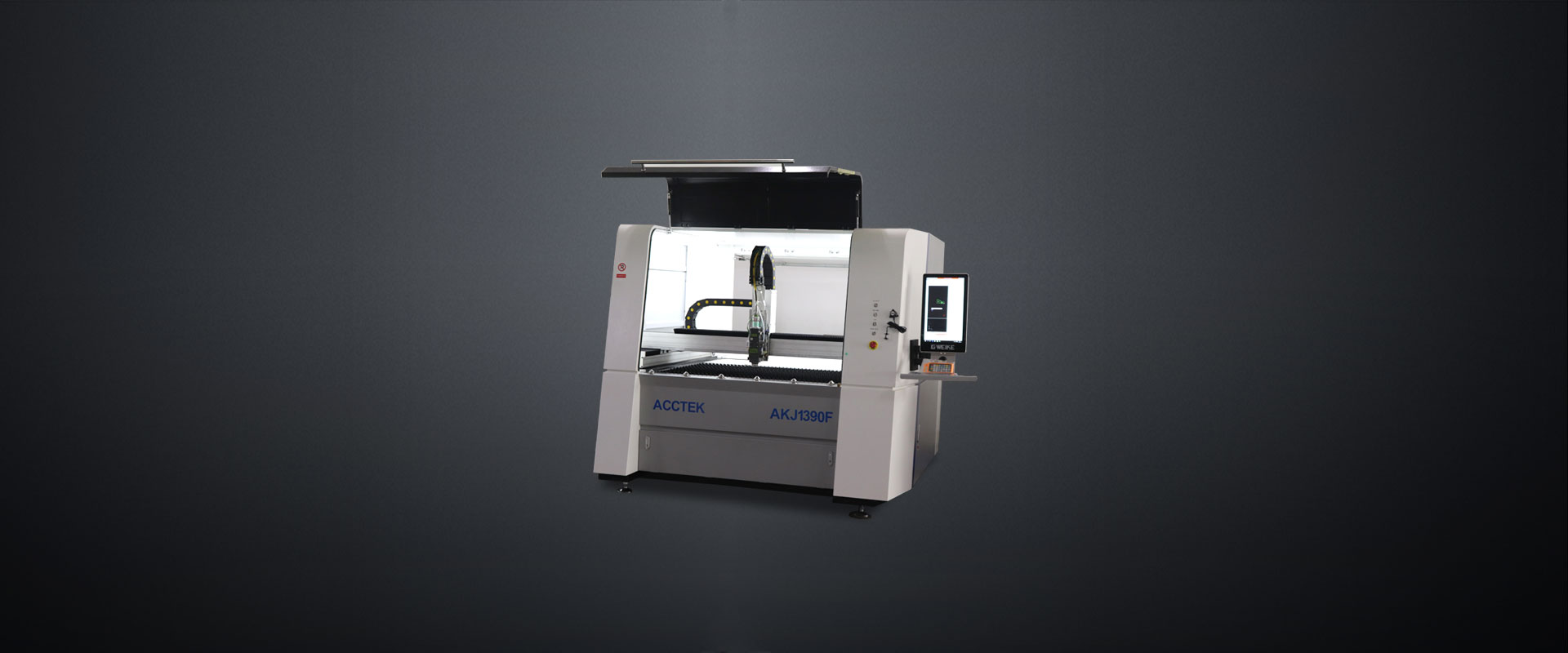

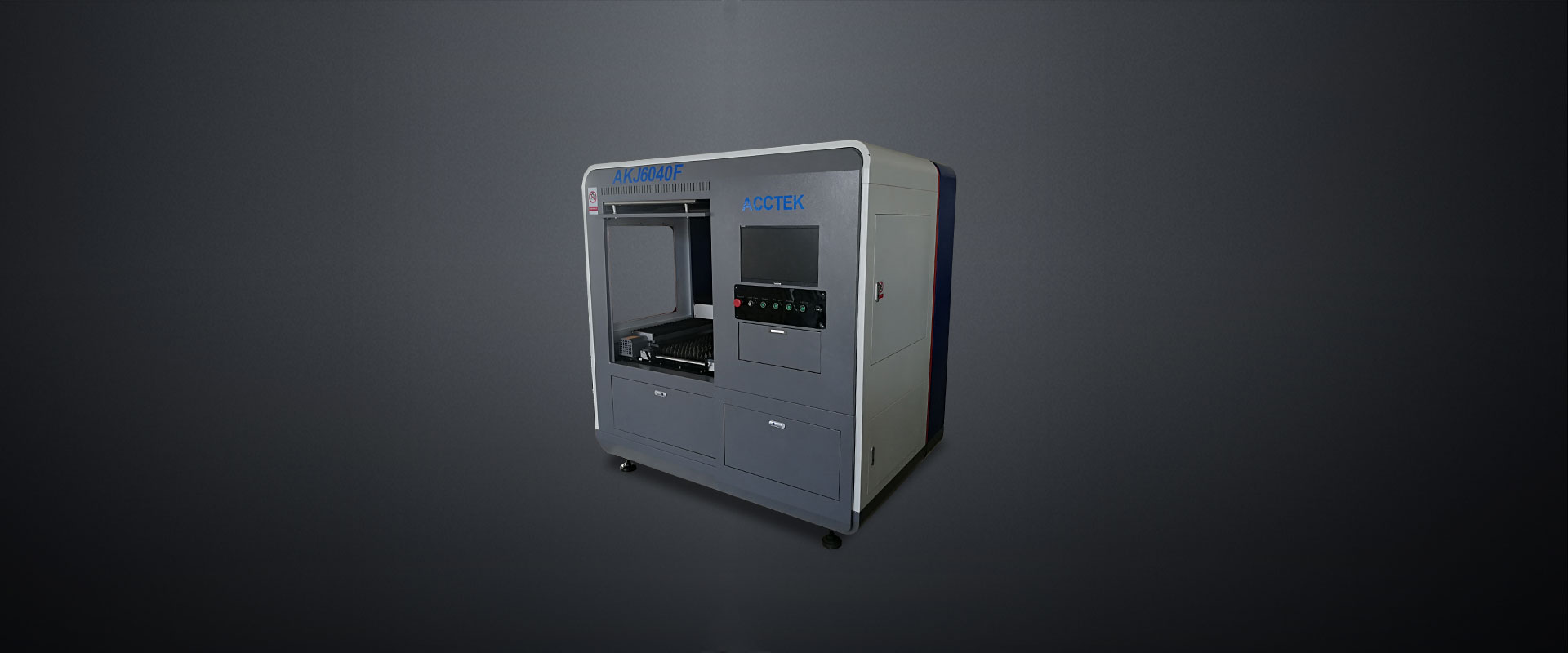

| 1 | Model | AKJ 1390F | AKJ 6040F |
| 2 | Working area | 1300*900mm | 600*400mm |
| 3 | Cutting thickness | Depends on different metal | |
| 4 | Laser power | 500w/750w/1000w/1500w | |
| 5 | Laser device | Raycus/IPG | |
| 6 | Laser wave length | 1080nm | |
| 7 | Transmission system | Imported TBI ballscrew | |
| 8 | X.Y axis location accuracy | ±0.01mm | |
| 9 | X.Y axis repeat location accuray | ±0.01mm | ±0.008mm |
| 10 | X.Y axis max moving speed | 30m/min | 40m/min |
| 11 | Max cutting speed | 1-16m/min | |
| 12 | Min cutting line with | 0.02mm | |
| 13 | Machine area size | 2300x2100x2050mm | 1780x1270x1900mm |
| 14 | Working voltage | AC220v±10%,50/60HZ | |
| 15 | Applications metal | Stainless steel; Carbon steel; Iron;Aluminum;Copper,etc. | |
| 16 | Max acceleration | 0.5G | |
| 17 | Max load-bearing of work table | 500KG | |
| 18 | Power consumption of whole machine | ≤11KW | |
| 19 | Supported file format | BMP,HPGL,PLT,DST,DXP,and AI | |
| 20 | Driving system | Japan Panasonic servo motors | |
| 21 | Cooling type | Water-cooling by chiller | |
| 22 | Transmission mode | Grinding precision ball screw drive | |
| 23 | Laser control software | Shanghai Cypcut with handwheel | |
| 24 | Compatible software | CorelDraw AutoCAD Photoshop | |
Basic Features
Fully enclosed design
The window adopts an European CE standard laser protective glass,ensure the operator's safty and avoid the somke.
Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
Raycus laser generator
Raycus has an efficient and professional R&D and production team. The single module CW fiber laser series not only can meet diversified demands of customers to the greatest extent，but also provide personal customization service. Now laser output connector is QBH，with multiple control modes.
WSX brand cutting head
HIWIN Guide rails
Rail works with slider ,drive the machine move ,with good bearing capacity.y
Japanese Yaskawa Servo Motor
Y axis 1.8KW,X axis 850W.Faster speed with signal feedback .Low heat radiation .Run smoothly at ultra-low speed.Reduce the vibration ,avoid oscillation .Efficient torque enhancement .
All axis ballsrew transition
To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.
Options
More powerful Raycus laser
We supply laser power from 0.5KW to 12KW to meet different customers'cutting demands.
IPG Laser Generator
IPG Laser Generator is available from 1.0KW to 12KW. It has better performance in cutting aluminum,brass and cooper.
applications
Precision fiber laser cutting machine fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, environmental protection equipment. Laser cutting machines are widely used in electronics,
