parameters
| NO | Description | Parameter | |

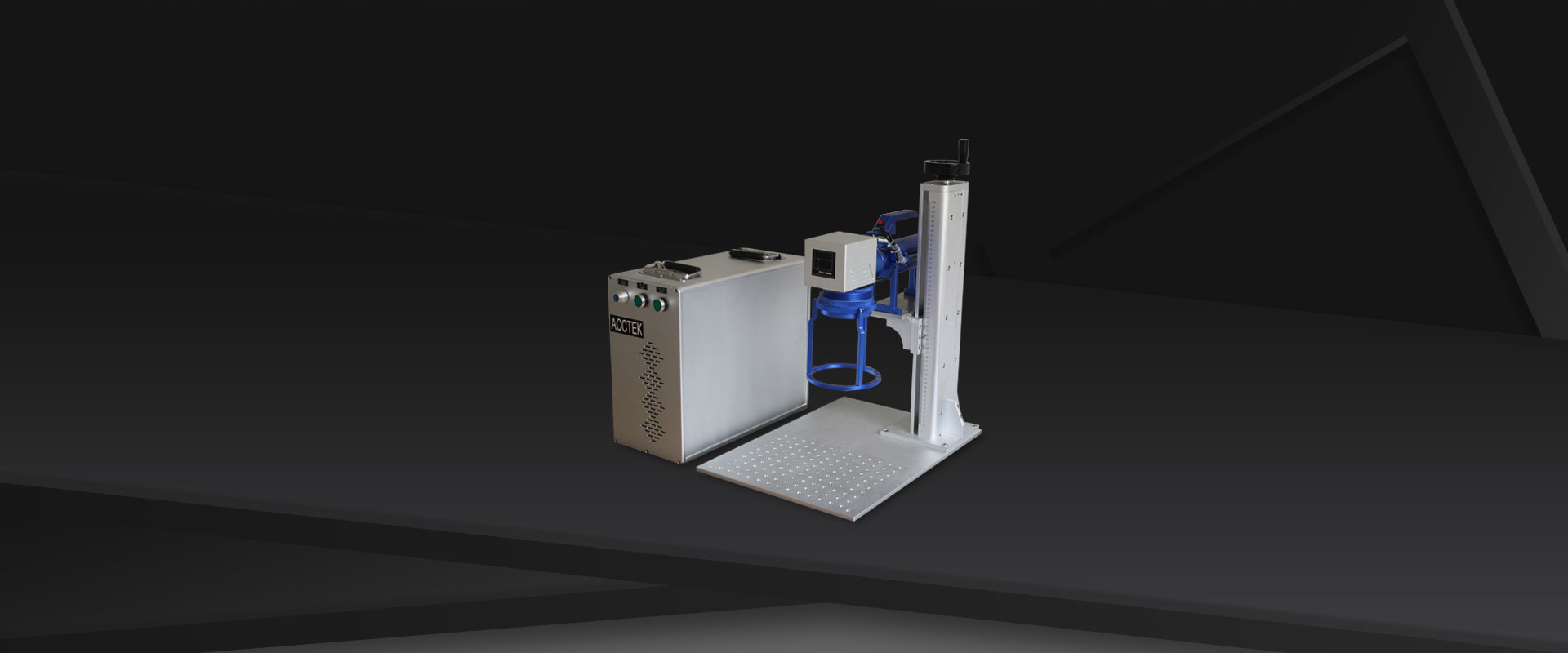

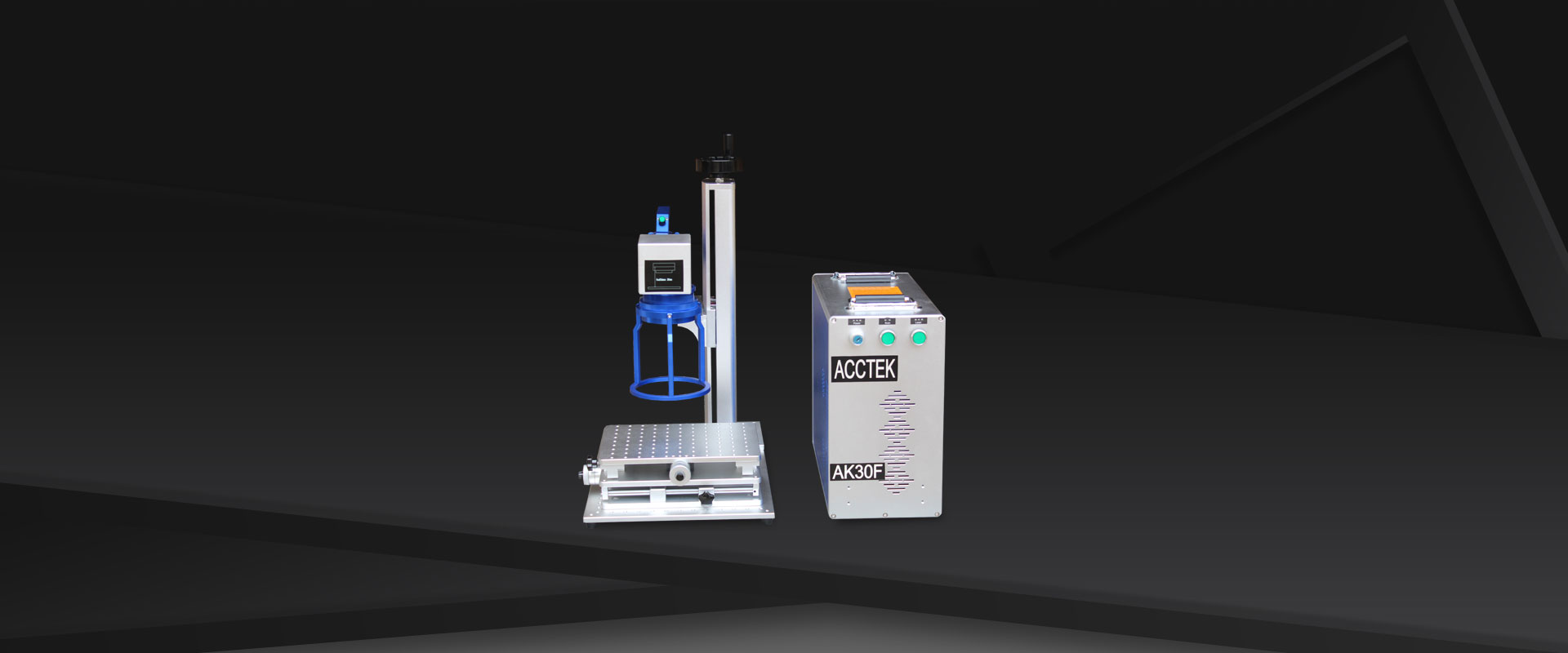

| 1 | Model | hand-held AK20F | hand-held AK30F |
| 2 | Laser Power | 20W | 30w |
| 3 | Working area | 220*220mm | |
| 4 | Laser Wavelength | 1064nm | |
| 5 | Fiber laser generator | Raycus | |
| 6 | Minimum Line Width | 10 micron | |
| 7 | Minimum Character | 0.15mm | |
| 8 | Marking Depth | 0~0.5mm | |
| 9 | Engraving Line Speed | ≤7000mm/s | |
| 10 | Repeatability Accuracy | ±0.002mm | |
| 11 | Beam Quality | M2:1.2~1.8 | |
| 12 | Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically
Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
|
|
| 13 | Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. | |
| 14 | Working Voltage | 220V±10%/50Hz/4A | |
| 15 | Unit Power | <0.5kw | |
| 16 | Use of the Environment | Clean and Dust Free or Dust less | |
| 17 | Working Condition:Humidity | 5%-75%,Free of Condensed Water | |
| 18 | Laser Module Life | >100000 hours | |
| 19 | Package | Plywood box | |
| 20 | N/G weight | 45/60kg | |
Basic Features
Raycus 20w fiber laser source
Long service life and more stable operation
Field lens
Good material, good focus, high power, long service life
High-speed galvanometer
Compact and convenient, easy to operate, durable, energy-saving and efficient, high-definition scanning, fast
handheld removable
Small size, high efficiency, easy to install and carry, simple and convenient operation of the whole machine, it can be carried out by hand
Original LMCV4 EZCAD controller
The system is stable, easy to operate and install
Options
rotary device for marker
Rotary device for cylinder object , like ring , pen
Field Galvo lens
2D aluminum adjust table
applications
Applicable Materials: Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
