parameters
| NO | Description | Parameter | ||||||

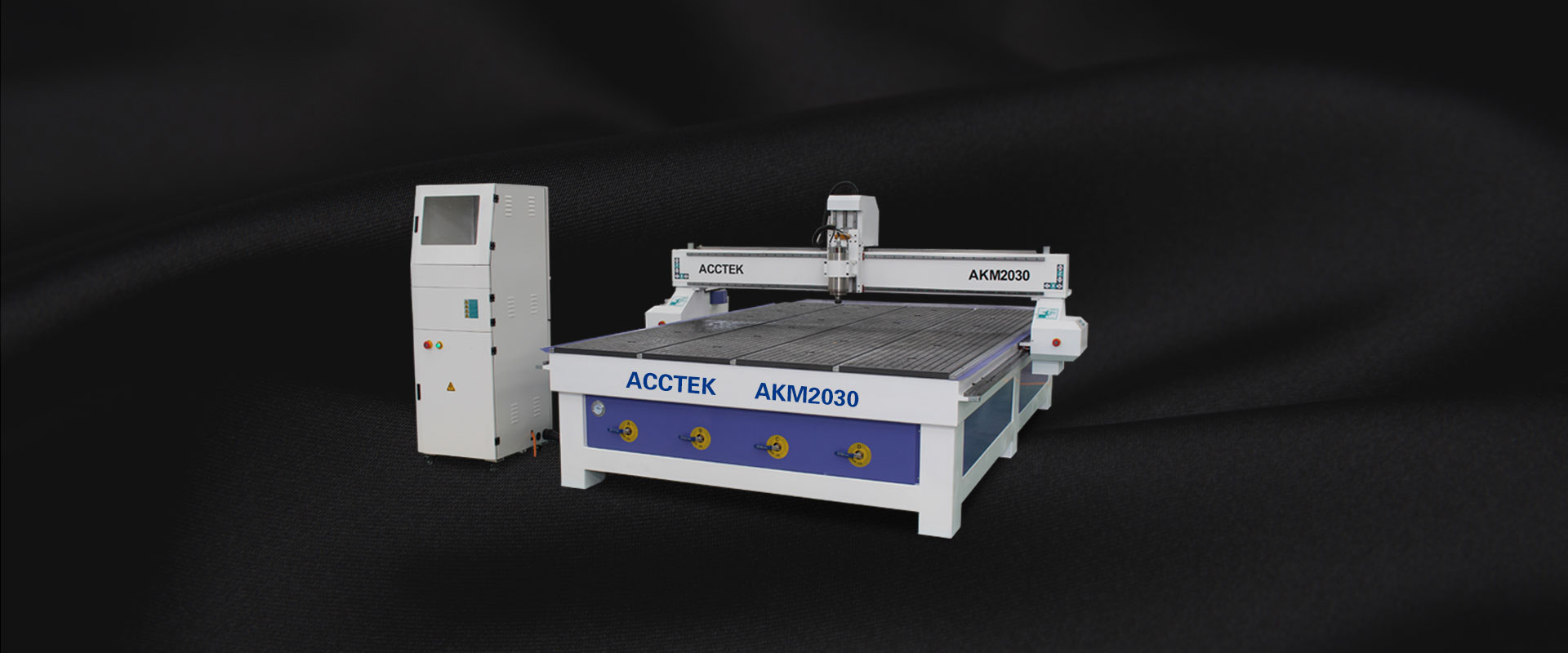

| 1 | Model | AKM1325 | AKM1530 | AKM2030 | AKM2040 | |||
| 2 | X,Y,Z Working Area | 1300x2500x200mm | 1500x3000x200mm | 2000x3000x200mm | 2000x4000x200mm | |||
| 3 | Spindle type | water cooling spindle | ||||||
| 4 | Spindle power | 3.2KW | ||||||
| 5 | Spindle rotating speed | 0-24000rpm | ||||||
| 6 | Power supply | 380v±10v,50/60HZ,3 phasaes | ||||||
| 7 | Worktable | T slot table combined vacuum table | ||||||
| 8 | Operating temperature | 5℃-40℃ | ||||||
| 9 | Working humidity | 30%-75%(without condensed water) | ||||||
| 10 | Woking precision | ±0.03mm | ||||||
| 11 | System resolution | ±0.001mm | ||||||
| 12 | Control configuration | Mach3 control system | ||||||
| 13 | Data transefer interface | ethernet | ||||||
| 14 | Graphic format supported | G code; *.u00,*mmg,*plt,*.nc | ||||||
| 15 | Compatible software | ARTCAM, UCANCAM,Type3 | ||||||
| 16 | Net weight | 1300KG | 1700KG | 1900KG | 2000KG | |||
| 17 | Gross weight | 1400KG | 1820KG | 2100KG | 2200KG | |||
Basic Features
3.2KW water cooling spindle
Smooth body, not easy to rust;powerful and longer lifetime.water cooling ,low noise .0-24000 rpm ,ER20 collets
Mach3 controller
Support Winxp win7 win10. doesn’t need driver installed. Ethernet connection ,working with computer .
HIWIN Guide rails
Rail works with slider ,drive the machine move ,oil lubricated with good bearing capacity.
stepper motor NEMA 34
Without A/D conversion, the digital pulse signal can be directly convertedinto angular displacement. Cheap and good performance ,function is to drive the axis movement as parameter setting.
5.5kw air vacuum pump
The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of fixing on the worktable.AKM1325 needs 1 piece 5.5 kw pump ,AKM1530 needs 1 piece 7.5 kw pump .AKM2030 needs 2 pieces 5.5 kw pump ,AKM2040 needs 2 pieces 7.5 kw pump
Options
Oil free vacuum pump
Continuous operation, no oil, low noise, low vibration, Environmentally friendly and low energy consumption
dust collector
All dust residue is controlled with a small area by employing the brush of the dust hood on the spindle to get the residue vacuumed away into the dust
Air cooling spindle
High precision chuck balanced nut, with powerful fan high-efficiency refrigeration.High precision steel ball retainer; grease lubrication high temperat
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.
applications
Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows. The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
