parameters
| No. | Description | Parameter |

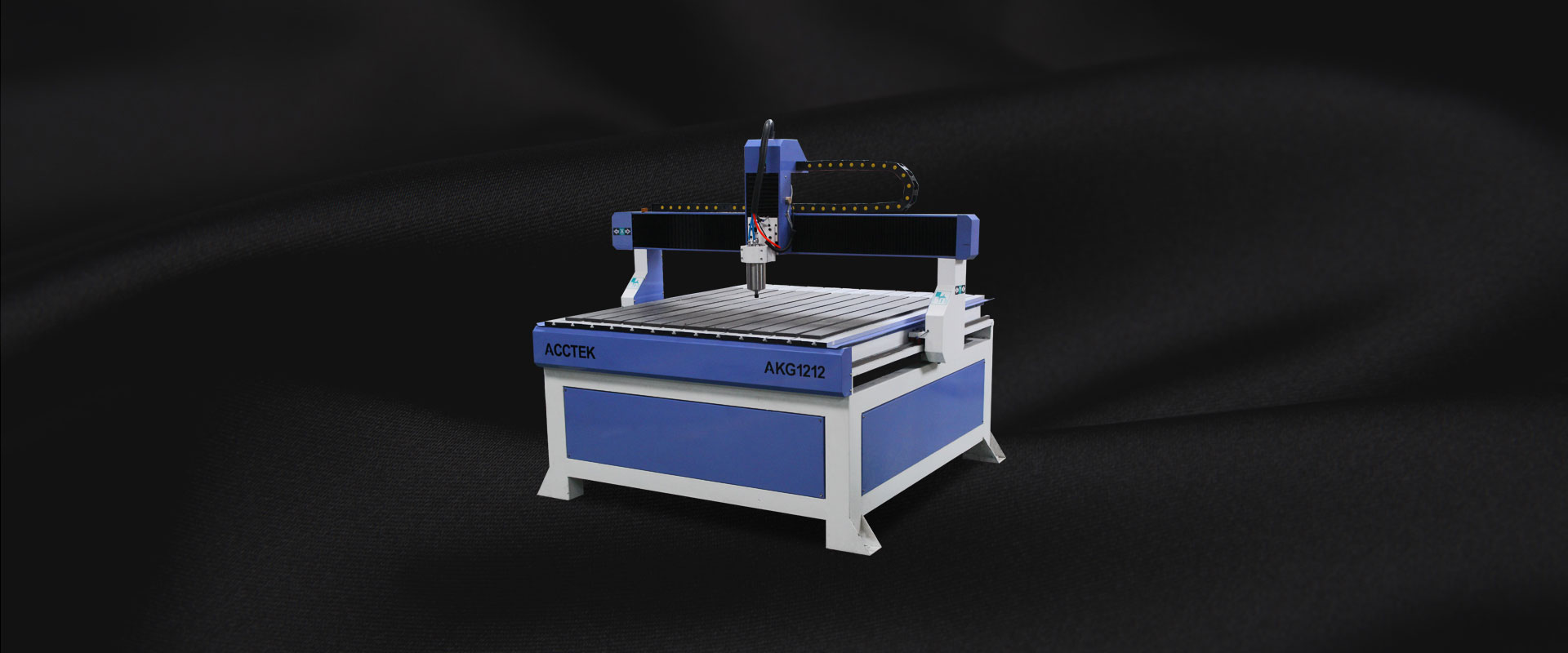

| 1 | Model Name | AKG1212 |
| 2 | X Y Z working area | 1200x1200x200mm |
| 3 | Whole structure | cast iron body |
| 4 | Table surface | T-slot working table |
| 5 | Movement parts | Taiwan TBI Ball screw transmission |
| 6 | Spindle | 1.5KW water cooling spindle |
| 7 | Spindle speed | 24000 RPM |
| 8 | Drive Motor | NEMA34 stepper motor and Leadshine M860Hdriver |
| 9 | Max. Rapid Travel Rate | 15000 mm/min |
| 10 | Max. Working speed | 8,000mm/min |
| 11 | Control System | Mach3 control system with ethernet connection |
| 12 | Software | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwar |
| 13 | Machine precision | 0.01mm |
| 14 | Repositioning precision | 0.03mm |
| 15 | Command | g code |
| 16 | Working Voltage | 380v .50/60HZ,3 phase or 220v ,50/60hz ,1/3 phases |
| 17 | Package Size | 1960*1800*1830mm |
| 18 | Net Weight | 550kg |
| 19 | Z-axis setting | Auto Z origin tool sensor |
| 20 | Color | Can be customized as you like |
Basic Features
1.5KW water cooling spindle
high speed grinding, low noise. Antioxidant don’t rust,long lifetime.0-24000 rpm ,ER11 or ER16 collet .
Mach3 controller
Support Winxp win7 win10 system.Connected with computer during running ,USB or ethernet connection.
Hiwin square guide rail
Rail works with slider ,drive the machine move ,oil lubrication with good bearing capacity.
Stepper motor NEMA34 with Leadshine driver M860H.
Cheap and good performance ,function is to drive the axis movement as parameter setting.
Fuling inveter
Famous brand with high performance ,drive spindle working ,Smooth operation and speed change.
Ball screw transmission
Its function is to convert rotary motion to linear motion,drive the machine move
Options
5.5kw air vacuum pump
The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of fixing on the worktab
Taiwan delta servo motor
Faster speed with signal feedback .Low heat radiation .Run smoothly at ultra-low speed.Reduce the vibration ,avoid oscillation .Efficient torque enhanc
Mist spray cooling system
Reduce the heat of material and workingtool bits .suitable for metal processing .
dust collector
All dust residue is controlled with a small area by employing the brush of the dust hood on the spindle to get the residue vacuumed away into the dust
Air cooling spindle
High precision chuck balanced nut, with powerful fan high-efficiency refrigeration.High precision steel ball retainer; grease lubrication high temperat
DSP controller
featuring delicate appearance,powerful functionality and flexible operation.
applications
Very popular in furniture industry:wood,folding screens, tables, chairs, and many other materials such as plastic board, PVC sheet, dual color board, aluminum, etc.
