parameters
| NO | Description | Parameter | |||

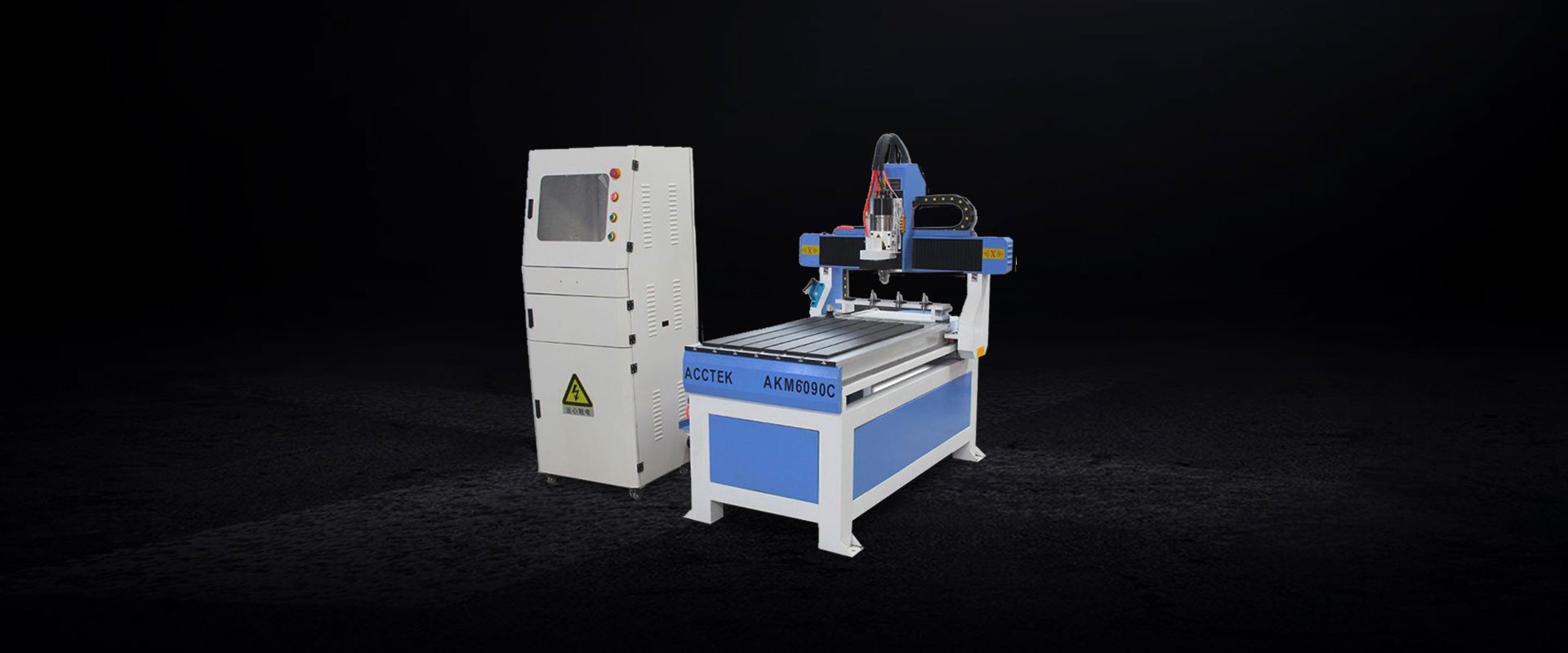

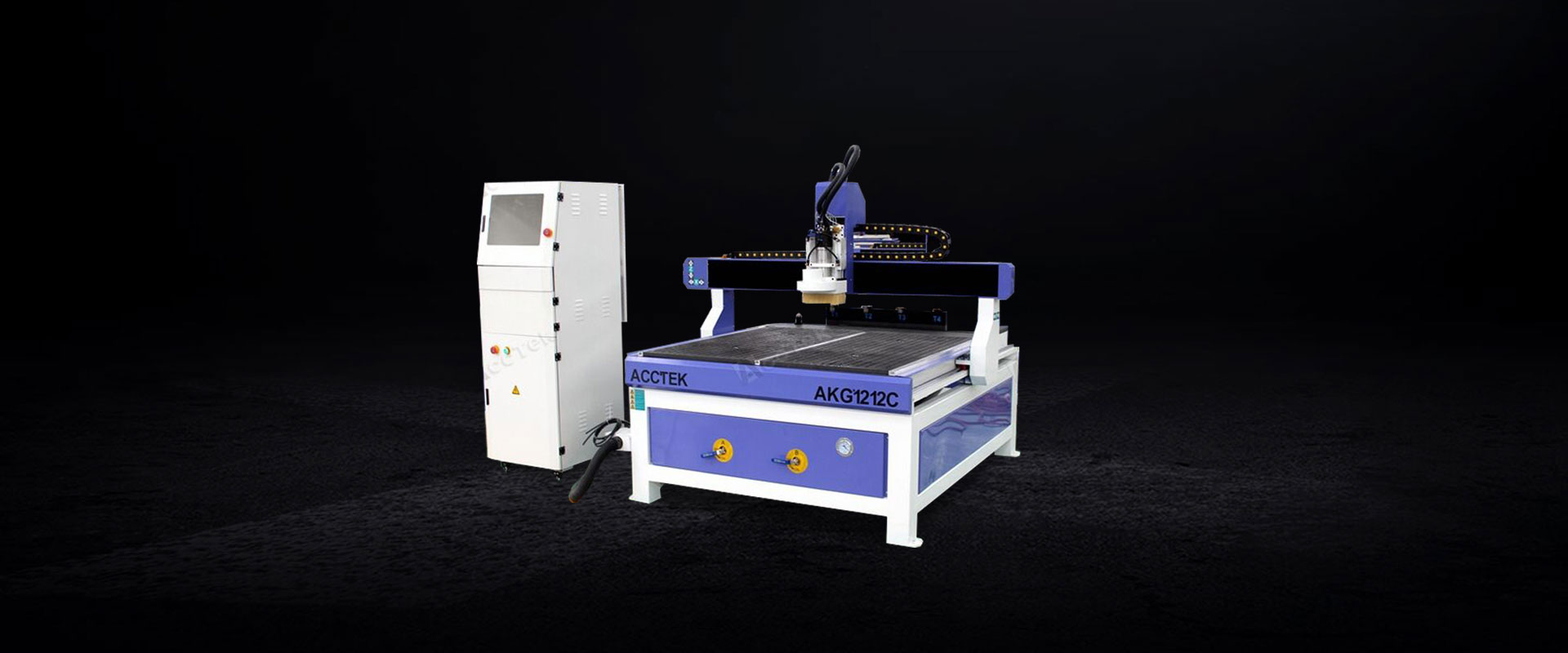

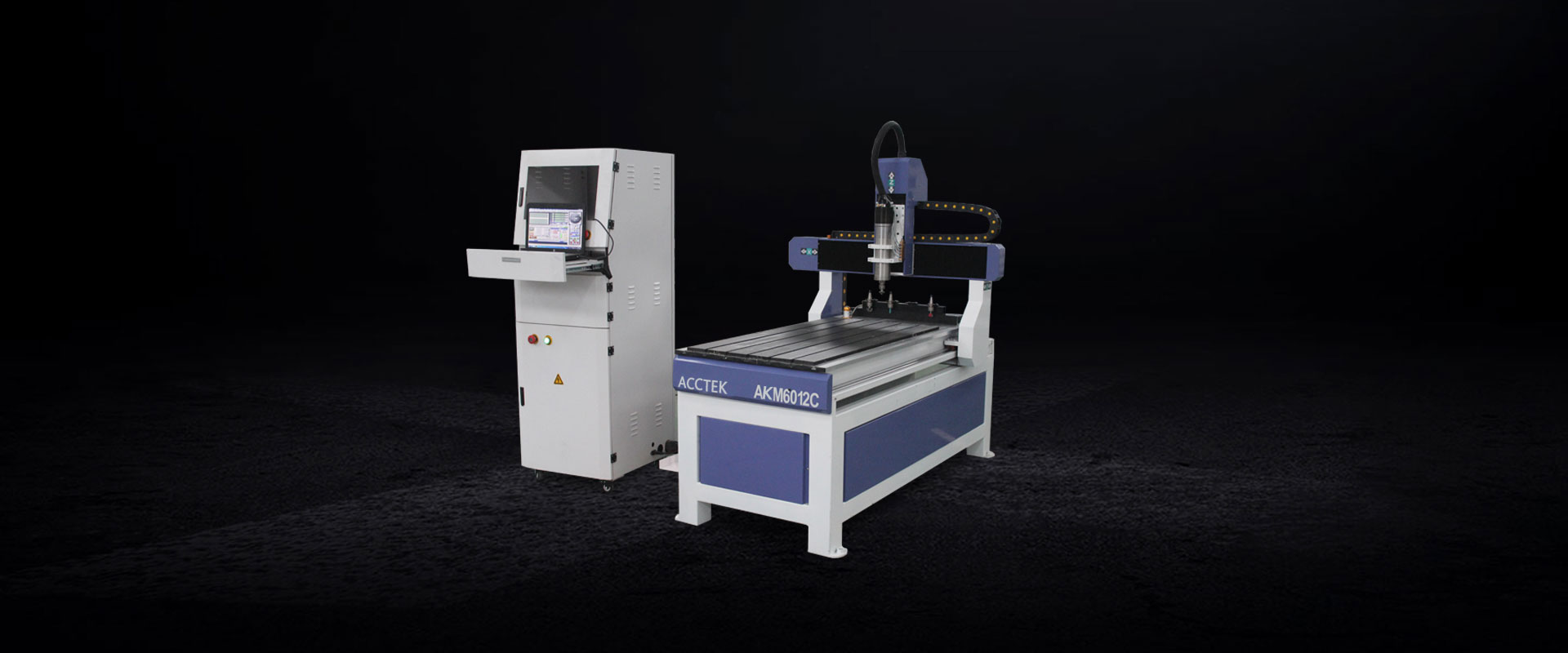

| 1 | Model | AKM6090C | AKM6012C | AKG1212C | |
| 2 | Working area | 600x900x200mm | 600x1200x200mm | 1200x1200x200mm | |
| 3 | Spindle Type | Water cooling ATC spindle | |||
| 4 | Spindle Power | 2.2KW | |||
| 5 | Spindle rotating speed | 0-18000rpm | |||
| 6 | Table Surface | AC220±10V,50HZ | |||
| 7 | Worktable | Vacuum working table | |||
| 8 | Locating precision | <0.01mm | |||
| 9 | Operating temperature | 5℃-40℃ | |||
| 10 | Working humidity | 30%-75%(without condensend water) | |||
| 11 | Woking precision | ±0.03mm | |||
| 12 | System resolution | ±0.001mm | |||
| 13 | Control configuration | Mach3 control system | |||
| 14 | Data transfer interface | USB/PC | |||
| 15 | Graphic format supported | G code:*u00,*mmg,*plt,*.nc | |||
| 16 | Compatible software | ARTCAM,UCANCAM,TYPE3 | |||
| 17 | Cutting thickness | 0-40mm also(depends on different material) | |||
| 18 | Whole machine dimension | 1640*1160*1600mm | 1940*1160*1600mm | 2100*2000*1600mm | |
| 19 | Net Weight | 450KG | 530KG | 650KG | |
| 20 | Gross weight | 500KG | 600KG | 750KG | |
| 21 | Packing | Plywood case(veneer wood case for export) | |||
Basic Features
2.2KW water cooling ATC spindle
Spindle high speed grinding, the precision is very good. Antioxidant don’t rust, long lifetime.
Auto tool magazine
4pc auto tool changers, ISO20. Don’t need to change tools manually when machine works, improve efficiency a lot.
Mach3 controller
Support Winxp win7 win10. doesn’t need driver installed. Aluminum housing, shielding interference, stable and reliable.
HIWIN Guide rails
Rail works with slider ,drive the machine move ,with good bearing capacity.
LEADSHINE Hybrid servo motor
Without A/D conversion, the digital pulse signal can be directly convertedinto angular displacement. Cheap and good performance ,function is to drive the axis movement as parameter setting.
Ball Screw transmission
Convert rotary motion to linear motion,drive the machine move. High precision, high strength and long lifetime.
Options
Rotaryaxis
Wooden door and furniture decoration Solid wood door, compound door
Carousel tool changer
Fast speed, more convenient, save processing time, high control accuracy
dust collector
All dust residue is controlled with a small area by employing the brush of the dust hood on the spindle to get the residue vacuumed away into the dust
applications
●Mainly used for Wood furniture industry, Advertising industry, Decorate industry, Mold etc.
