parameters
| NO | Description | Parameter | |||

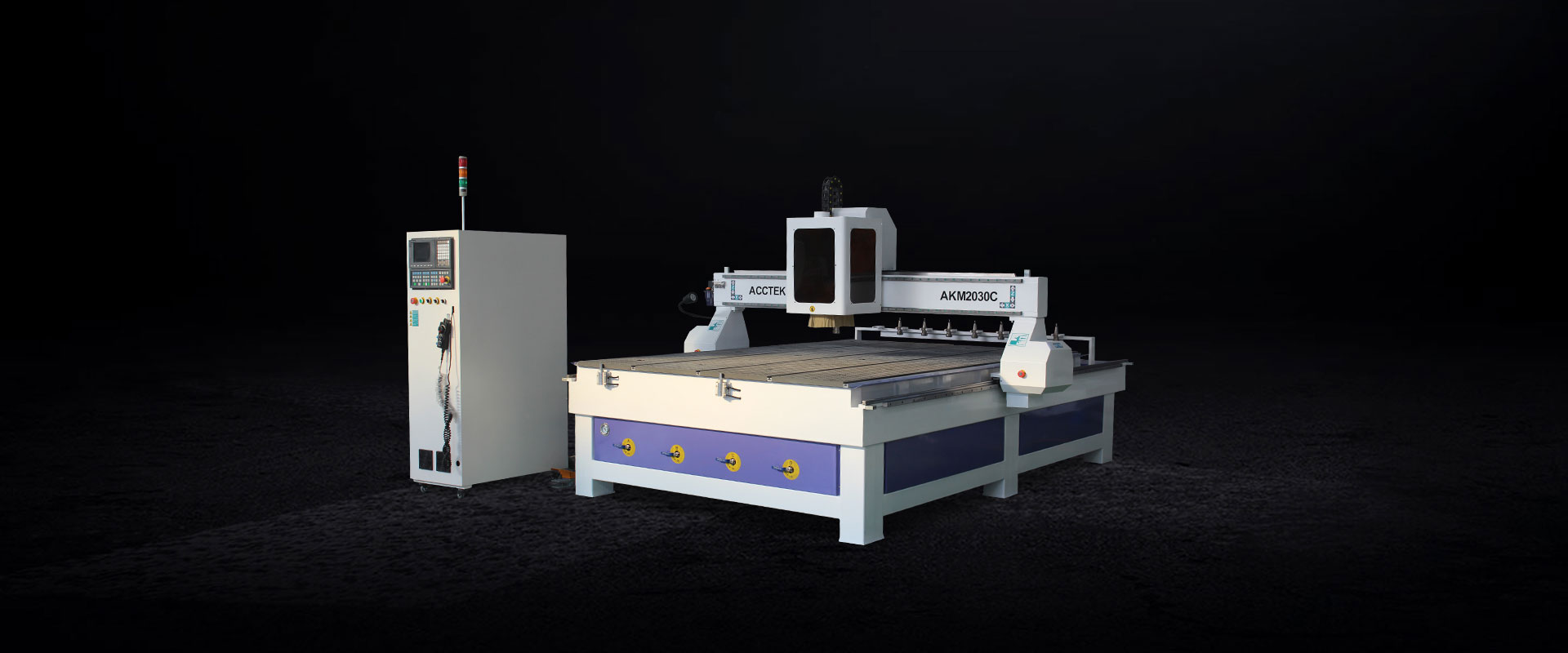

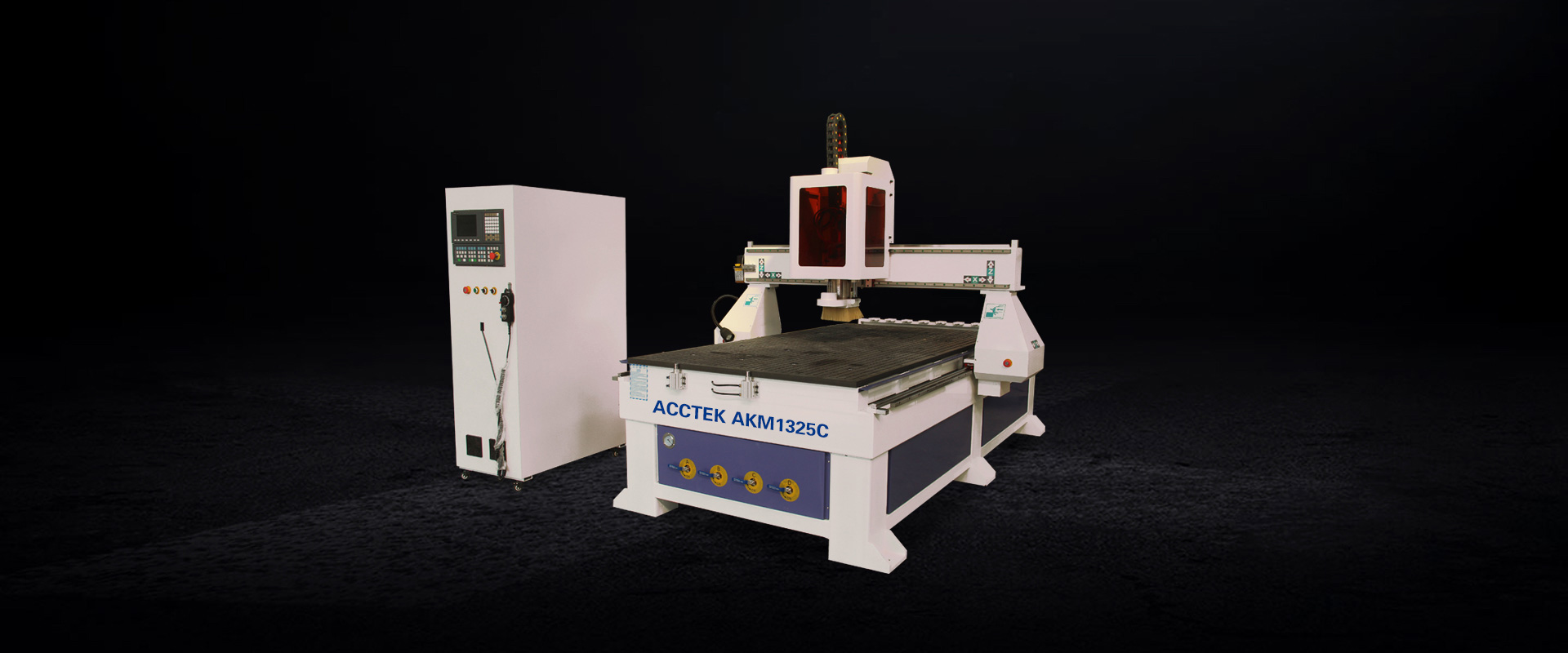

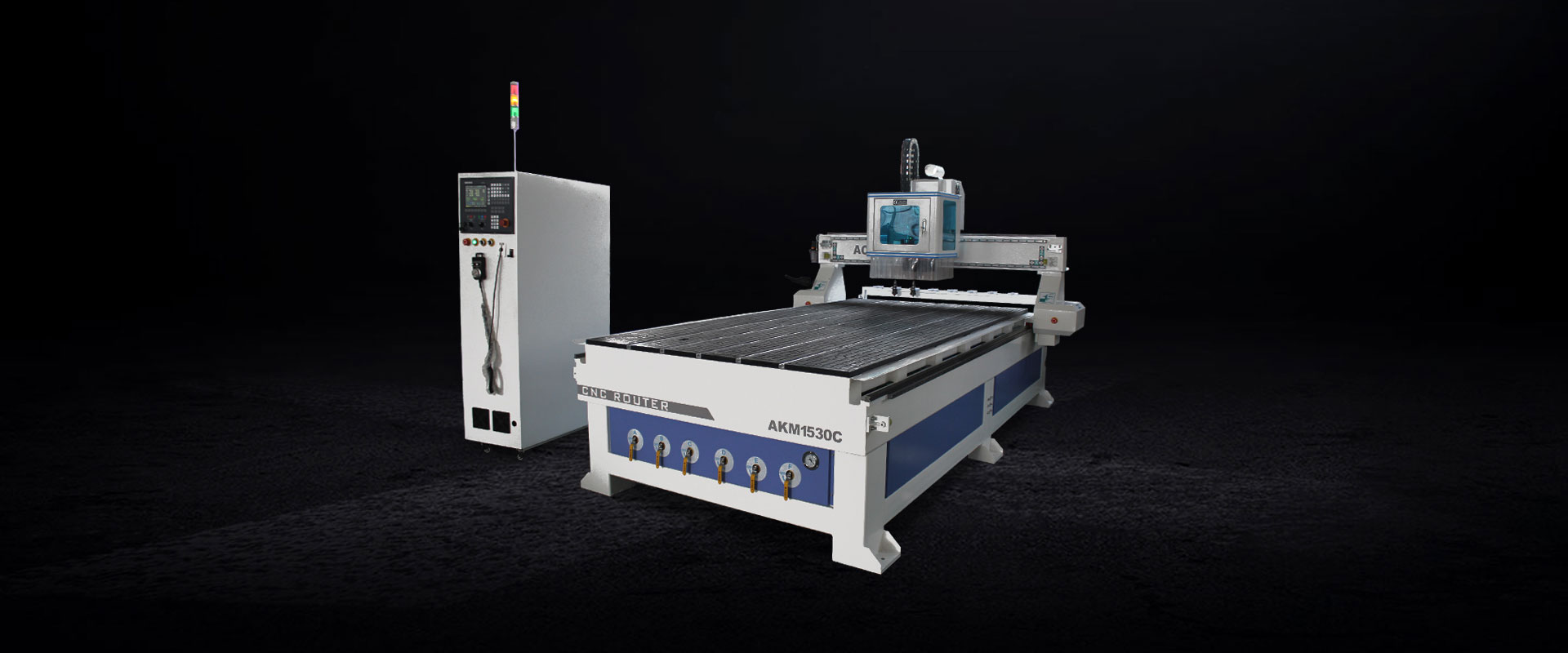

| 1 | Model | AKM1325C2 | AKM1530C2 | AKM2030C2 | AKM2040C2 |
| 2 | X,Y,Z Working Area | 1300x2500x250mm | 1500x3000x250mm | 2000x3000x250mm | 2000x4000x250mm |
| 3 | Table Size | 2150x3420mm | 2350x3920mm | 2850x3920mm | 2850x4920mm |
| 4 | X,Y,Z Traveling Positioning Accuracy | 0.01/300mm | |||
| 5 | X,Y,Z Repositioning Accuracy | 0.03mm/300mm | |||
| 6 | Table Surface | T-slot and vacuum working table | |||
| 7 | Frame | Heavy Steel Tube Structure | |||
| 8 | X,Y Structure | Rack and pinion Drive,Hiwin Rail Linear Bearings | |||
| 9 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw | |||
| 10 | Max. Power Consumption | (Without Spindle)5.8KW | |||
| 11 | Max. Rapid travel Rate | 50000mm/min | |||
| 12 | Max. Working Speed | 30000mm/min | |||
| 13 | Spindle Poweer | 9.0KW air cooling spindle ,ATC spindle | |||
| 14 | Spindle Speed | 0-18000RPM | |||
| 15 | Drive Motors | Servo motor | |||
| 16 | Working Voltage | AC380V/50/60HZ,3PH(Option:220V) | |||
| 17 | Command Language | G Code | |||
| 18 | Operation System | Taiwan Syntec control system | |||
| 19 | Computer Interface | USB/ Ethernet | |||
| 20 | Flash Memory | 512M | |||
| 21 | Collet | ER32 | |||
| 22 | X,Y Resolution | <0.03mm | |||
| 23 | SOftware Conpatibility | Type3 / Artcam software | |||
| 24 | Running Environment Temperature | 0-45 Centigrade | |||
| 25 | Relative Humidity | 30%-75% | |||
| 26 | Packing Size | 3670x2270x2080mm | 4170x2270x2080mm | 4170x2270x2080mm | 5170x2270x2080mm |
| 27 | N.W. | 1250KG | 1500KG | 1750KG | 1950KG |
| 28 | G.W. | 1450KG | 1750KG | 2050KG | 2250KG |
Basic Features
9KW ATC air cooling spindle
Smooth body, not easy to rust;powerful and longer lifetime.Independent research and development, rational design.
Auto tool magazine
8pc linear type auto tool changers, ISO30. Don’t need to change tools manually when machine works, improve efficiency a lot. More tool changers is available.
Syntec controller
The system stability is very good, the man-machine operation is friendly, easy to learn and operation, powerful function.
HIWIN Guide rails
Rail works with slider ,drive the machine move ,with good bearing capacity.
Taiwan Delta servo motor
Faster speed with signal feedback . Low heat radiation . Run smoothly at ultra-low speed. Reduce the vibration ,avoid oscillation . Efficient torque enhancement
5.5kw air vacuum pump
The air between the workpiece and the worktable surface is extracted to form a negative pressure, so as to achieve the purpose of fixing on the worktable
Options
Cutting saw
High service life, sharper, can cut a variety of materials
Boring unit
Ensure machining accuracy and save machining time
Carousel tool changer
Fast speed, more convenient, save processing time, high control accuracy
applications
Furniture: wooden doors, chairs,cabinets, stairs,computer tables, sewing machine, musical instruments
Plate processing: insulation, plastic and chemical, the PCB, move the car body, bowing, track, stars anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture
Decoration industry: acrylic, PVC, MDF, artificial stone, plexi-glass, plastic, and copper and aluminum and other soft metal plate engraving and milling cutting
