parameters

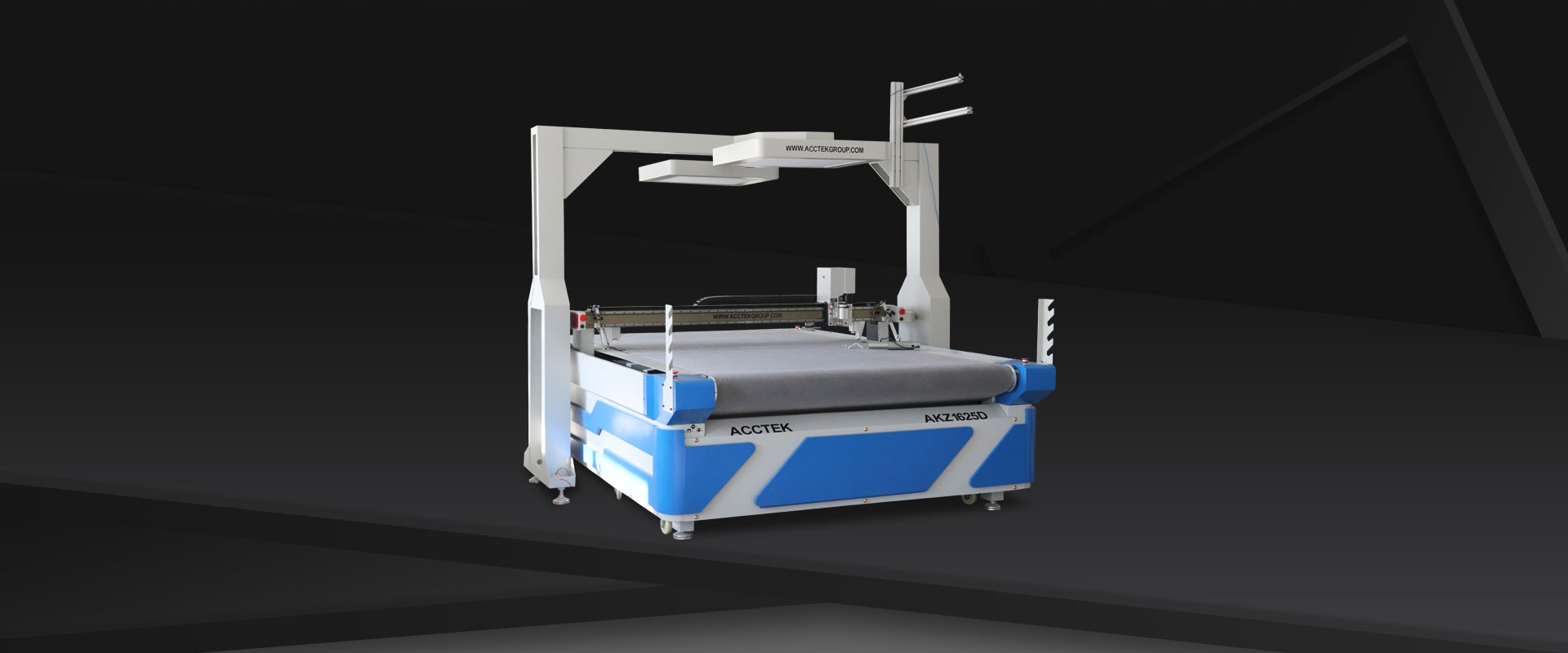

| Model | AKZ1625 | AKZ1825 |
| Max. Cutting size | 1600*2500mm | 1800*2500 |
| Power | 11KW | |
| Multifunction Tool Head | Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut tool/CCD camera/tangential knief/ drilling tool/projector/etc. | |
| Security Device | High sensitive infrared induction | |
| Cutting speed | Max. 1200mm/s (can be set up according to different materials) | |
| Movement speed | Maximum 1500mm/s | |
| Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc. | |
| Cutting thickness | Maximum 20mm (set according to different materials and tools) | |
| Material fixing method | High power vacuum absorption with felt | |
| Repeated positioning accuracy | ±0.05mm | |
| Mechanical Precision | Maximum 0.05mm | |
| Drive system | Taiwan Delta servo motor, Taiwan PMI linear guide rails | |
| Control system | Chinese Brand RD control system | |
| Data transmission method | USB port or Ethernet | |
| Support file | DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc. | |
| Operation environment | Temperature 0-40℃, Humidity 20%-80%RH | |
| Voltage | 380V/220V/50Hz/60Hz | |
Basic Features
Pneumatic oscillating Tools
The Pneumatic oscillating Tools is an air-driven tool particularly well suitable for cutting tough.dense materials but can also handle soft,thicker ones, for example foam.
Projector
The projector is mainly used to project cutting graphics, which can adjust the cutting position according to the projection, and realize fast and accurate visual cutting.Recommended for use with industrial CCD
Big CCD industry camera
The industrial CCD camera is mainly used for the collection of material information (Patterns and shapes). It is professionally used for the rapid information collection of irregular materials or materials with printed patterns to achieve fast and accurate cutting.
Rectification Roller frame
The rectification fabric frame can adjust the auto feed direction and speed of material, to ensure the accuracy of joint. Can be use on machine with auto feeding system
Automatic lamination
Lamination for multilayer fabric(cloth). ensure the vacuum pump suck all material on table
Options
applications
Cutting work of Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials etc.
