parameters

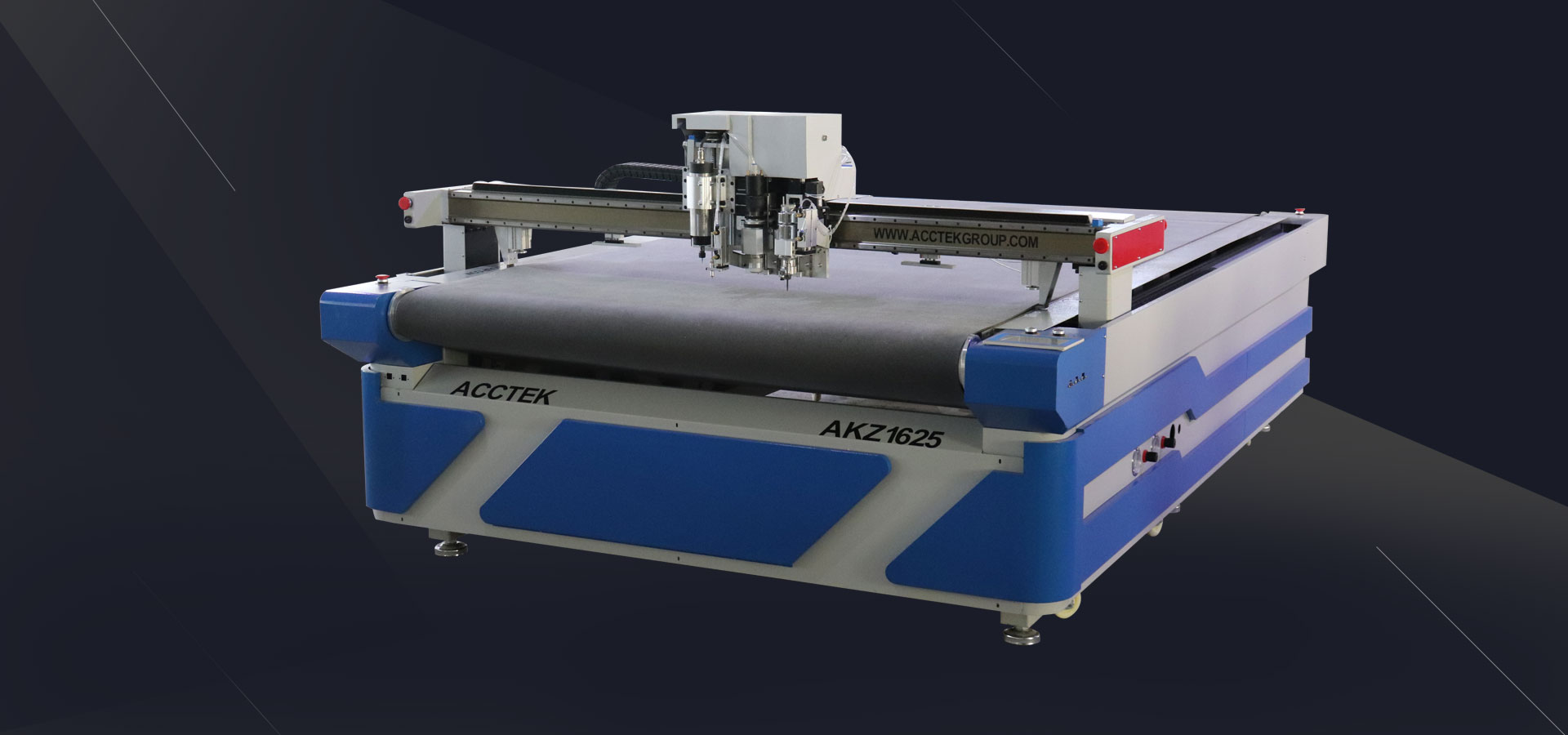

| Model | AKZ1625 | AKZ1825 |
| Max. Cutting size | 1600*2500mm | 1800*2500mm |
| Power | 11KW | |
| Multifunction Tool Head | Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut tool/CCD camera/tangential knief/ drilling tool/projector/etc. | |
| Security Device | High sensitive infrared induction | |
| Cutting speed | Max. 1200mm/s (can be set up according to different materials) | |
| Movement speed | Maximum 1500mm/s | |
| Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc. | |
| Cutting thickness | Maximum 20mm (set according to different materials and tools) | |
| Material fixing method | High power vacuum absorption with felt | |
| Repeated positioning accuracy | ±0.05mm | |
| Mechanical Precision | Maximum 0.05mm | |
| Drive system | Taiwan Delta servo motor, Taiwan PMI linear guide rails | |
| Control system | Chinese Brand RD control system | |
| Data transmission method | USB port or Ethernet | |
| Support file | DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc. | |
| Operation environment | Temperature 0-40℃, Humidity 20%-80%RH | |
| Voltage | 380V/220V/50Hz/60Hz | |
Basic Features
Oscillating knife tools
The oscillating knife is suitable for cutting softer, medium-density materials, the high oscillating frequency makes it possible to cut at high processing speeds for greater throughput
Round knife cutting head
The circle tools is designed for cutting challenging fibrous materials inexpensively and reliably, the circle knife is suitable for a wide range of challenging materials, including fiberglass and aramid,soft clothes, fabric with thin thickness
Marker pen holder
For marking/drawing words or number on material.
Punching hole tool
For punching holes with same diameter on soft materials (standard diameter 2mm/ 4mm/6mm optional)
Spindle Milling tool
The milling tool is mainly for hard material, can be used on acrylic, aluminum plate, MDF and other materials.
Rectification Roller frame
The rectification fabric frame can adjust the auto feed direction and speed of material, to ensure the accuracy of joint. Can be use on machine with auto feeding system
Options
V-groove cut tool
The V-cut tool is the perfect tool for producing complex structural designs from foam core or sandwich board materials, the tools can be set for cuttin
Identification Pressure rolle
The Pressure roller is perfect for processing single-wall corrugated cardboard. this tools accommodates crease wheels with three diameter of big,middle
Pneumatic oscillating Tools
The Pneumatic oscillating Tools is an air-driven tool particularly well suitable for cutting tough.dense materials but can also handle soft,thicker one
applications
Cutting work of Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials etc.
